QUALITY BEGINS WITH PLANNING

Our trained and experienced engineers work from early in the project all the way to completion. We determine materials and methods that ensure the product meets or exceeds customer’s expectations. Our advance tools and techniques deliver the results with cost effectiveness.
During product development, GN Altech uses a rigorous Advance Product Quality Planning (APQP) System which emphasizes process failure mode and effect analysis. Our engineers utilize leading edge methods to simulate the filling of the mould and the solidification process. Your virtual cast part is created in this way for optimization and the avoidance of any flaws.
In production we achieve quality control and prevent defects from passing to the next stage via three point quality check system namely, In Process Inspection, Final Inspection and Pre-Dispatch Inspection. Our fully equipped work stations found throughout our casting and machining facility are an evidence of our commitment to Quality.

CAD Systems

  • NX CAD & CAM - Siemens

Data Exchange Formats

  • STEP 3D
  • IGES 3D
  • DWG 2D

Simulation Software

  • Magmasoft 5.4

ERP

  • SAP B1 HANA

MEASURE-TEST-DOCUMENT

Metal & Moulding Material

  • Simulation Software - Magmasoft 5.4
  • Thermo analysis
  • Fully equipped Sand testing laboratory
  • Metal Analyzer - Foundry Master Germany
  • Microscopy
  • Density Index Analyzer
  • Tensometer and Die coat thickness and viscosity tester

Physical Properties

  • Hardness testing
  • Tensile testing
  • X-ray testing
  • Pressure test for leakage
  • Ultrasonic testing

Measuring

  • Zeiss Contura G2 CMM with scanning facility
  • 3D scanner - GOM (Germany)
  • Mahr Marsurf XC2 for contour measurement
  • Mitutoyo SJ410 surface roughness tester

Tool Support System

  • Shrink Fit Machine - Haimer (Germany)
  • Tool Pre Setter - Zoller (Germany)

Quality Assurance Equipments

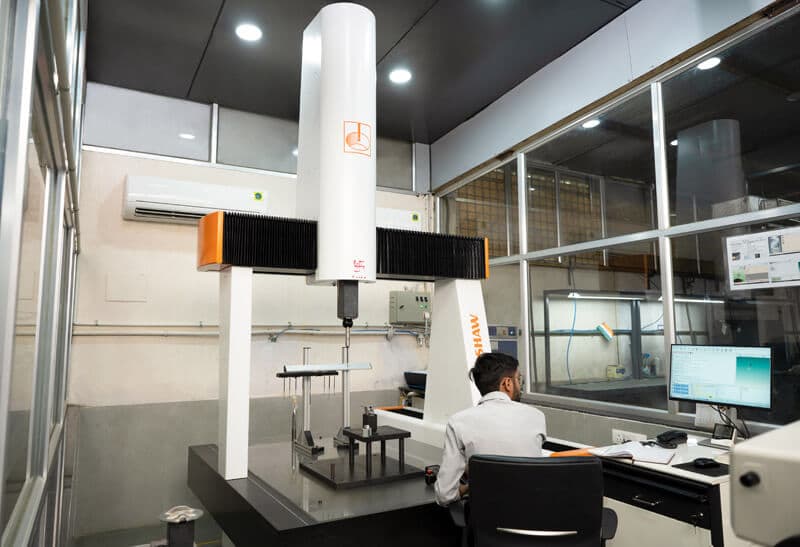

CMM Equipment

CMM

  • Make: RENISHAW Made in U.K
  • Qty.: 01 nos.
  • Capacity: XYZ Axis (1000x1000x800MM)

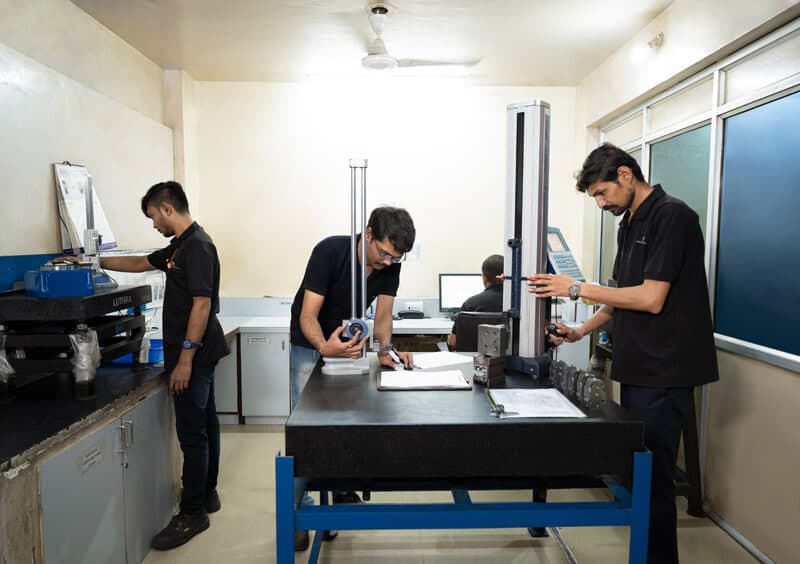

Standard Room

  • Mahr Surf Surface roughness tester in U.K
  • Mitutoyo 2D Height Gauge.
  • Mitutoyo double column Height Gauge
  • Partwise attribute gauges
